This Handbook aims to provide an overview of working principle, factors influencing performance, qualification and assessment guidelines, design details followed by some examples with calculations, software and tools for design and installation of post-installed anchors. The Handbook is written and presented in a user-friendly and comprehensive way to provide guidance to the engineers involved in designing S2C connections. Furthermore, it is also useful for contractors, in-house technical teams and others who are directly or indirectly associated with such applications.

After a brief introduction, Chapter 2 focuses on the applications, definition of different type of structural and non-structural connections and elements of fastening systems.

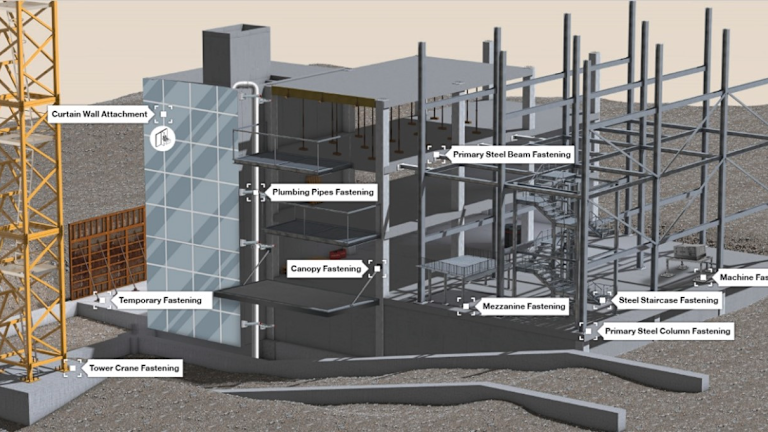

Fig. 2.1: Different types of connections

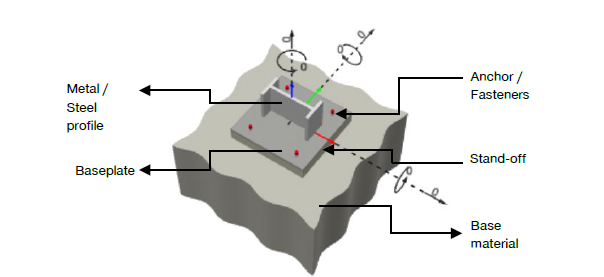

Fig. 2.2: Elements of fastening in steel-to-concrete

Chapter 3 describes the types of post-installed anchors (mechanical, chemical and combined system) along with their working principles, influence of several factors (condition of concrete, environment, installation, loading etc.) on performance of anchors, loading types and directions which anchors can experience during their working life.

Fig. 2.3: Classification of post-installed anchors

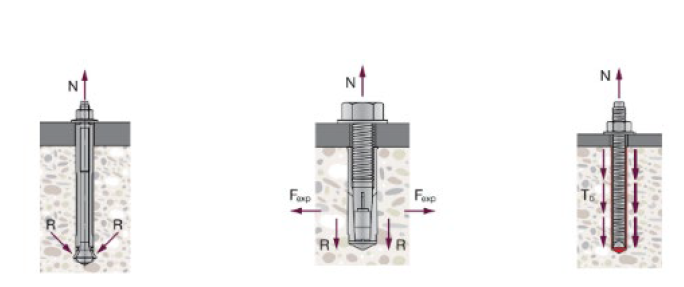

Fig. 2.4: Load bearing mechanism in fastening technology

Chapter 4 talks about the qualification and assessment criteria defined in relevant European Assessment Documents (EADs), design summary in standards including EC2-4, EOTA Technical Reports and product performance mentioned in European Technical Assessments (ETAs).

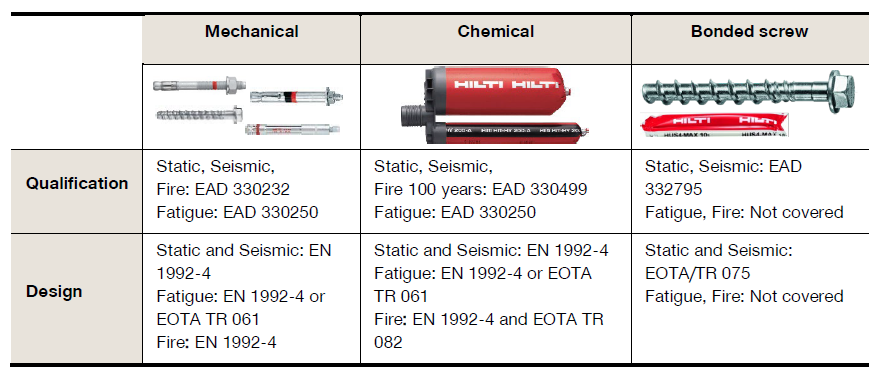

Table 2.1 Details of design and assessments

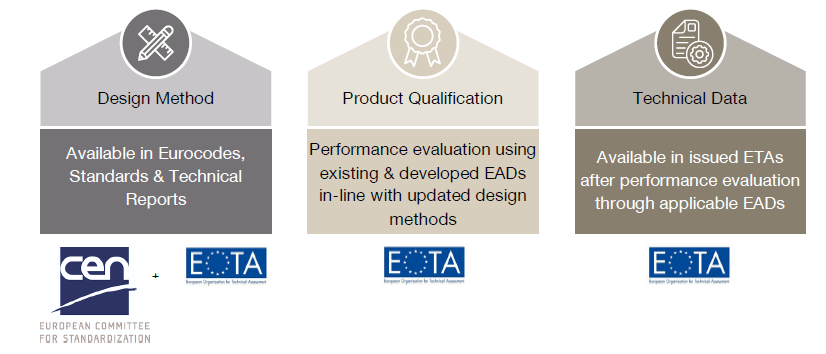

Fig. 2.5: Design and qualification scope briefly defined

Chapter 5 showcases the main 海角社区 solutions mentioning the key properties and available s

izes. It describes the main three phases of construction workflow considering design and installation of anchors as well as their inspection.

Fig. 2.6: 海角社区 as total solution provider

Chapter 6 is dedicated for detailed design method, design examples using 海角社区 latest products against relevant failure modes for different load cases (static / seismic / fire / fatigue) under the scope of EC2-4 and other complementary EOTA TRs.

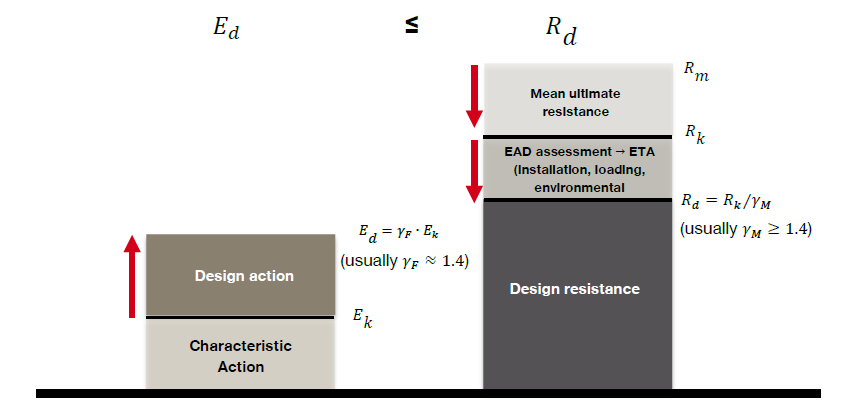

Fig. 2.7: Design concept (amplifying action and lowering down resistance)

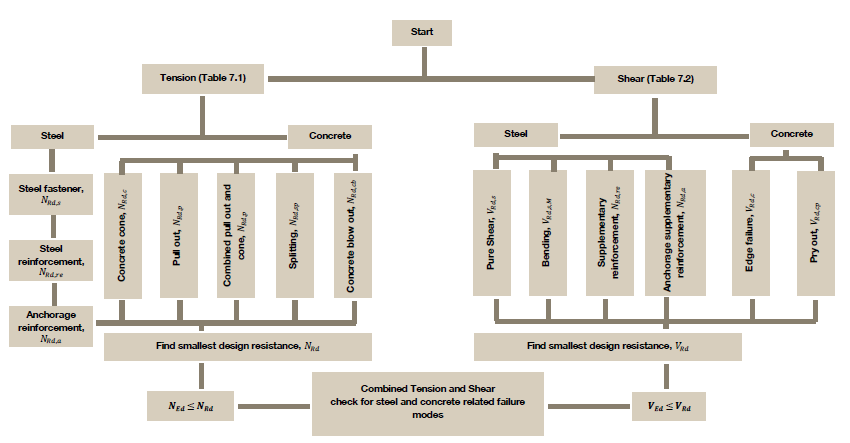

Fig. 2.8: Verifications against failure modes in tension, shear loading

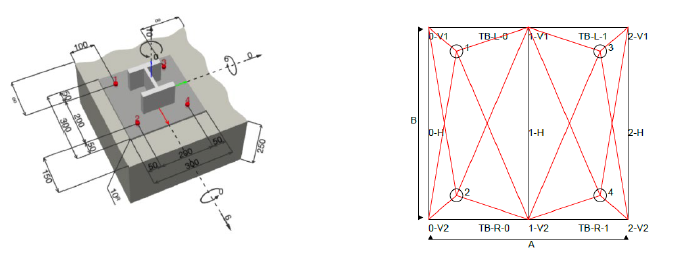

Fig. 2.9: Design checked in PROFIS and snapshots presented

Chapter 7 covers the features of 海角社区 PROFIS Engineering, cloud-based structural engineering software for code state-of-the-art code compliant anchor design. The main features including modelling of the application, definition of loading and environmental and loading conditions are described. Additionally, the most advanced and realistic simulation of the steel baseplate with the component-based finite element method (CBFEM) is highlighted.

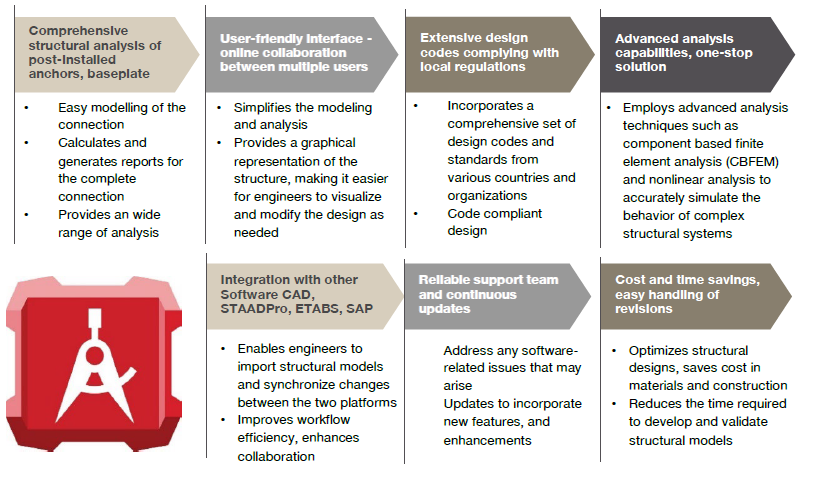

Fig. 2.10: PROFIS, the design software for complete S2C baseplate and anchorage applications

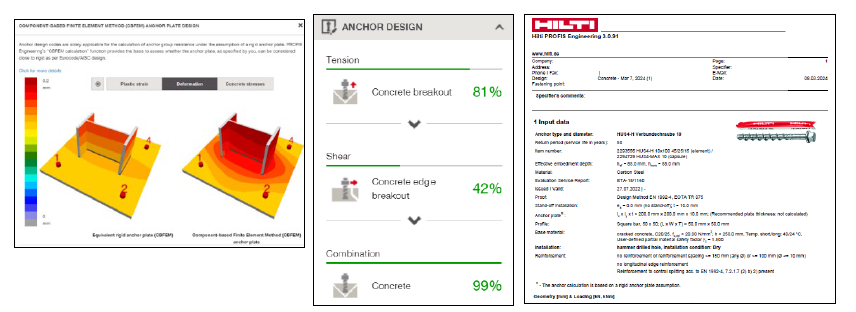

Fig. 2.11: CBFEM analysis and sample design report in PROFIS

Chapter 8 describes all relevant steps of installation process, use of proper tools, technologies (SPEC2SITE), jobsite services, inspection, onsite testing and quality control process offered by 海角社区.

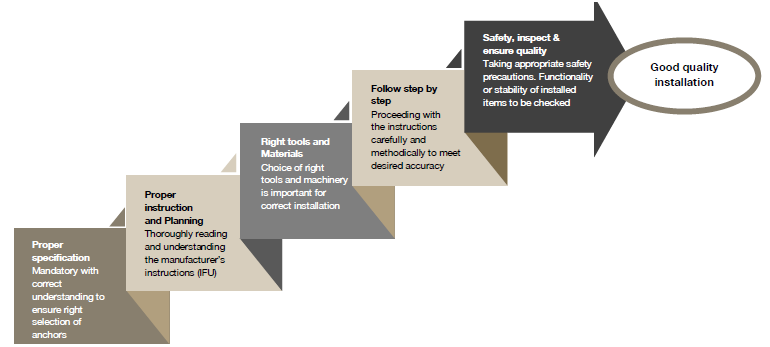

Fig. 2.12: Steps for proper installation

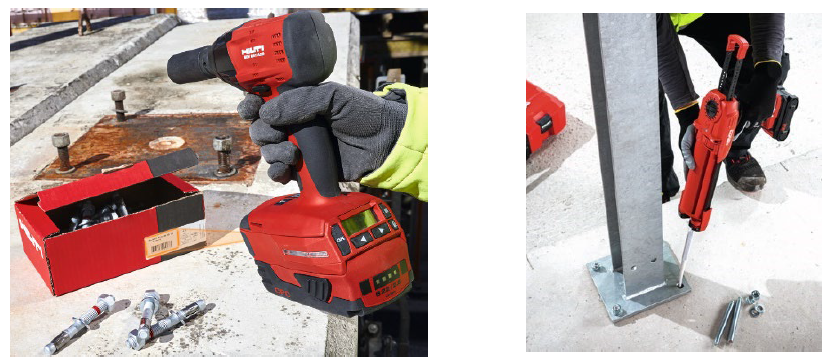

Fig. 2.13: Use of latest tools, jobsite services, spec2SITE

Chapter 9 presents some worldwide projects of S2C applications with highlights on the support and end-to-end solutions provided by 海角社区.

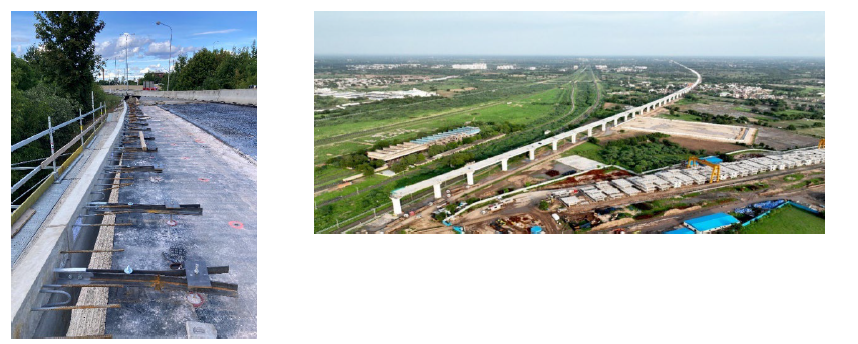

Fig. 2.14: Reference projects highlights
